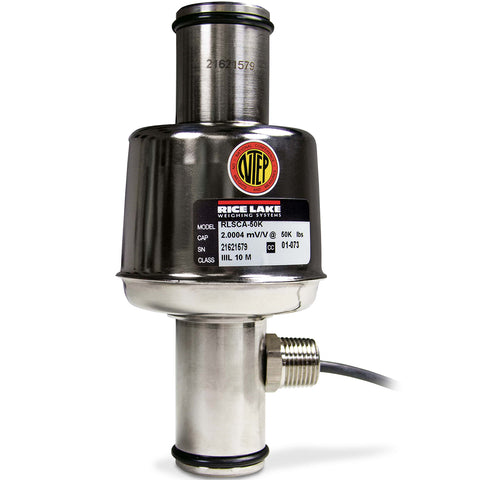

Rice Lake 68918, 50,000 lb Stainless Steel Rocker Column Load Cell, NTEP
| Full Scale Output | 2 mv/V nominal |
| Resistance | (Output) 1,050 (± 10) ohm (Input) 1,100 - 1,500 ohm |
| Seal Type | Welded Seal, IP67 |
| Cable Length | 30 ft |
| Safe Overload | 150% Full Scale |
Product Description
RLSCA load cell is designed to be a replacement for Cardinal® SCA-50K product. It features all stainless construction and welded sealing to provide IP67 environmental protection. This package includes a load cell and two retrofit cups that allow the RLSCA to match up with various field applications. Backed by NTEP IIIL 10 M Certification, this unit provides an easy-to-install and easy-to-access alternative to similar products on the market. Available in a 50,000 lb package, the RLSCA includes 30 ft (9.1 m) of standard load cell cable. Rated excitation: 5-10 VDC (15 V Maximum). Combined error: 0.025% full scale. Non-repeatability: 0.01% full scale. Insulation resistance: 1,000 megohms. Cable diameter: 0.200 polyurethane jacket. Cable color code: (green) positive excitation, (black) negative excitation, (red) positive signal, (white) negative signal.
