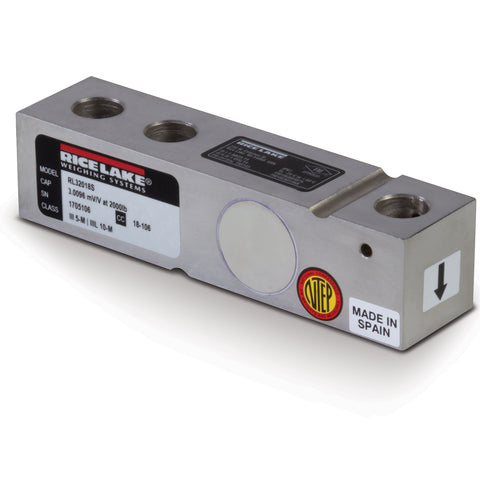

Rice Lake 189171, 15000 lb Cap, Environmentally Sealed Stainless Steel Load Cell
|Full Scale Output||3.0 mV/V|
|Resistance||(Output) 350 (±3) ohm (Input) 400 (±20) ohm|
|Seal Type||Environmentally Sealed, IP75|
|Cable Length||20 ft|
|Safe Overload||150% Full Scale|
Product DescriptionInterchangeable products for the load cells are: (Rice Lake) RL35023S, (VPG Sensortronics) 65023S, (VPG Sensortronics) 65023SS, and (VPG Sensortronics) SQB-HSS. The RL32018S stainless steel load cell is available in capacities from 500 lbs to 20,000 lbs. Sealed to IP66 standards, each cell includes 20 feet of cable and is FM approved. NTEP approved from 1,000 lb to 10,000 lbs. Rated excitation: 10 VDC (15 V Maximum). Combined error: 0.017% full scale. Insulation resistance: >5000 megaohms. Cable color code: (Red) positive excitation (Black) negative excitation (Green) positive signal (White) negative signal.
One of our agent will get back to you as soon as possible
Price : $631.00
