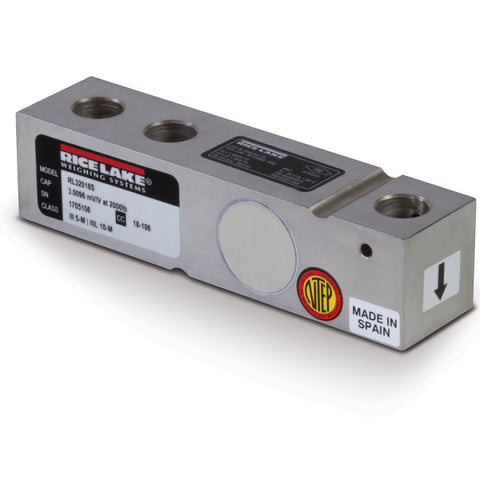

Rice Lake 189166, 2,500 lb Capacity, Sealed Stainless Steel Load Cell, NTEP

Rice Lake 189166, 2,500 lb Capacity, Sealed Stainless Steel Load Cell, NTEP

Price:
$291.54 Sale price

Compare at $306.12

Part #:
189166-1
Quantity

Full Scale Output 3.0 mV/V
Resistance (Output) 350 (±3) ohm (Input) 400 (±20) ohm
Seal Type Environmentally Sealed, IP70
Cable Length 20 ft
Safe Overload 150% Full Scale

Product Description

Interchangeable products for the load cells are: (Rice Lake) RL35023S, (VPG Sensortronics) 65023S, (VPG Sensortronics) 65023SS, and (VPG Sensortronics) SQB-HSS. The RL32018S stainless steel load cell is available in capacities from 500 lbs to 20,000 lbs. Sealed to IP66 standards, each cell includes 20 feet of cable and is FM approved. NTEP approved from 1,000 lb to 10,000 lbs. Rated excitation: 10 VDC (15 V Maximum). Combined error: 0.017% full scale. Insulation resistance: >5000 megaohms. Cable color code: (Red) positive excitation (Black) negative excitation (Green) positive signal (White) negative signal.
