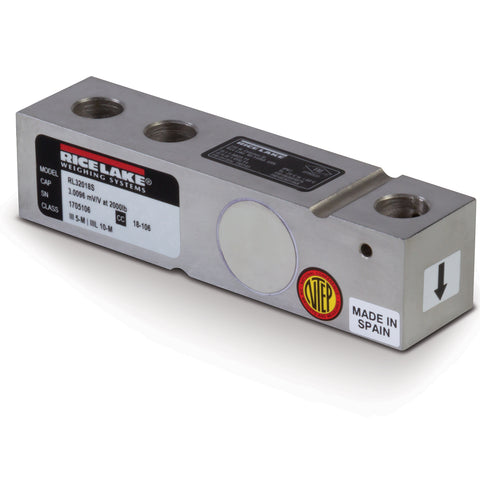

Rice Lake 189163, 500 lb Cap, Environmentally Sealed Stainless Steel Load Cell
Full Scale Output | 3.0 mV/V |
Resistance | (Output) 350 (±3) ohm (Input) 400 (±20) ohm |
Seal Type | Environmentally Sealed, IP67 |
Cable Length | 20 ft |
Safe Overload | 150% Full Scale |
Product Description
Interchangeable products for the load cells are: (Rice Lake) RL35023S, (VPG Sensortronics) 65023S, (VPG Sensortronics) 65023SS, and (VPG Sensortronics) SQB-HSS. The RL32018S stainless steel load cell is available in capacities from 500 lbs to 20,000 lbs. Sealed to IP66 standards, each cell includes 20 feet of cable and is FM approved. NTEP approved from 1,000 lb to 10,000 lbs. Rated excitation: 10 VDC (15 V Maximum). Combined error: 0.017% full scale. Insulation resistance: >5000 megaohms. Cable color code: (Red) positive excitation (Black) negative excitation (Green) positive signal (White) negative signal.
One of our agent will get back to you as soon as possible
Price : $291.54
Because our price on this item is lower than the manufacturer's suggested retail price, the manufacturer does not allow us to show you our price until you place the item in your shopping cart. Retailers like Amazon have the legal right to set their own prices independently. Adding the item to your cart allows Amazon to show you our price consistent with our goal of always offering you the lowest possible prices on the widest selection of products.
Adding this item won't require you to purchase the product. You can easily remove it from your cart if you decide not to buy it.
