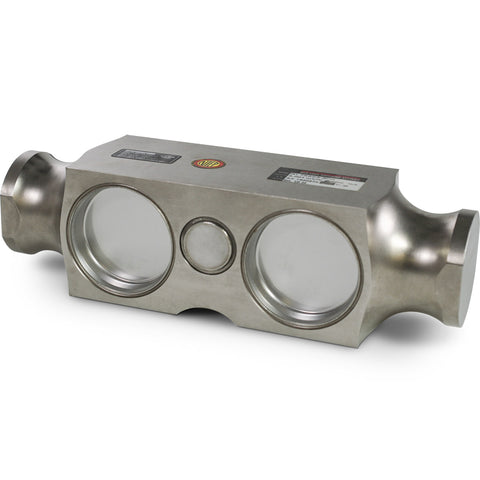

Rice Lake 21611, IP67 Double Ended Beam 50,000 lb Load Cell, Alloy Steel, NTEP

Rice Lake 21611, IP67 Double Ended Beam 50,000 lb Load Cell, Alloy Steel, NTEP

Price:
$736.39 Sale price

Compare at $773.21

Part #:
21611-1
Quantity

Full Scale Output 3.0 mV/V
Resistance (Output) 699-707Ω (Input) 686-714Ω
Seal Type Welded seal strain gauge, IP67
Cable Length 40 ft
Safe Overload/Sideload (Overload) 150% Full Scale (Sideload) 100% Full Scale

Product Description

Interchangeable products for the load cells are: VPG Revere 5223, VPG Sensortronics 65040A-XX-1127W, Artech 80210, Thurman TSC 800, and Unibridge DL9000. Very high performance end-loaded, center-supported shear beam designed for low-profile truck and track scales in harsh environments. Welded seal provides superior protection. Parallel link loading provides free movement in all horizontal directions with virtually no friction. Compatible with Translink Mounts. Capacities range from 50,000 lb to 100,000 lb (22,679.6 kg to 45,359.2 kg). Complete with 40 ft (12.2 m) of load cell cable. Rated Excitation: 5-10 VDC (15 V Maximum). Non-repeatability: 0.01% full scale. Combined error: 0.03% full scale. Insulation resistance: 5,000 megohms. Deflection at capacity: 50,000 lb is 0.018 in, 65,000 lb is 0.022 is, and 100,000 lb is 0.034 in. Cable diameter is 0.305 polyurethane jacket. Cable color code is: (red) positive excitation, (black) negative excitation, (green) positive signal, (white) negative signal.
