Used American International Used Dumper with Hopper and Control System

Price:
$189,420.00
Part #:
24-050
Quantity

Located In Calgary, Alberta - Canada
Condition Used
Estimated Age 2018
Brand American International
Includes 50' Dumper for wood chips or granular materials, reciving hopper & controls

Product Description

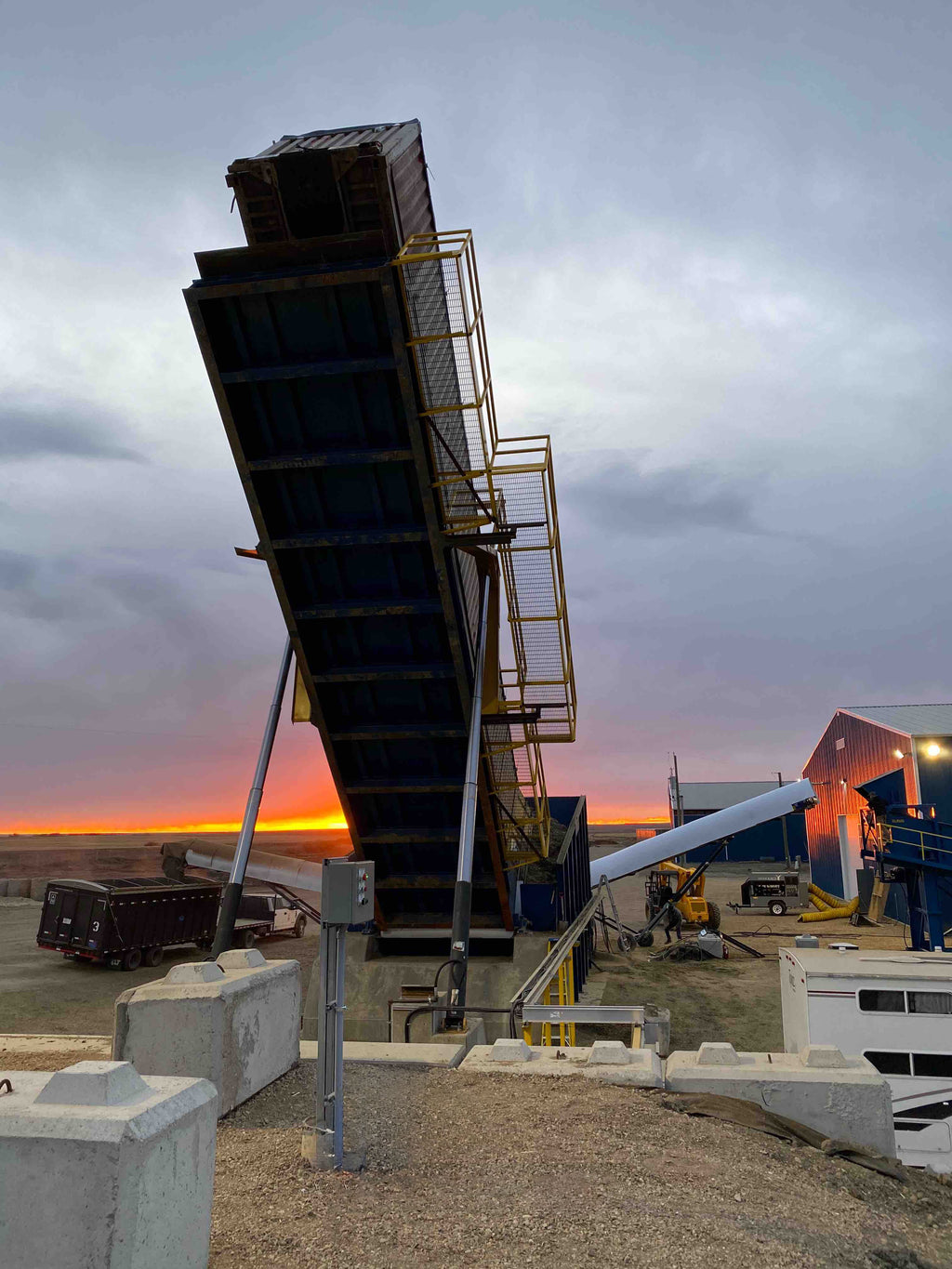

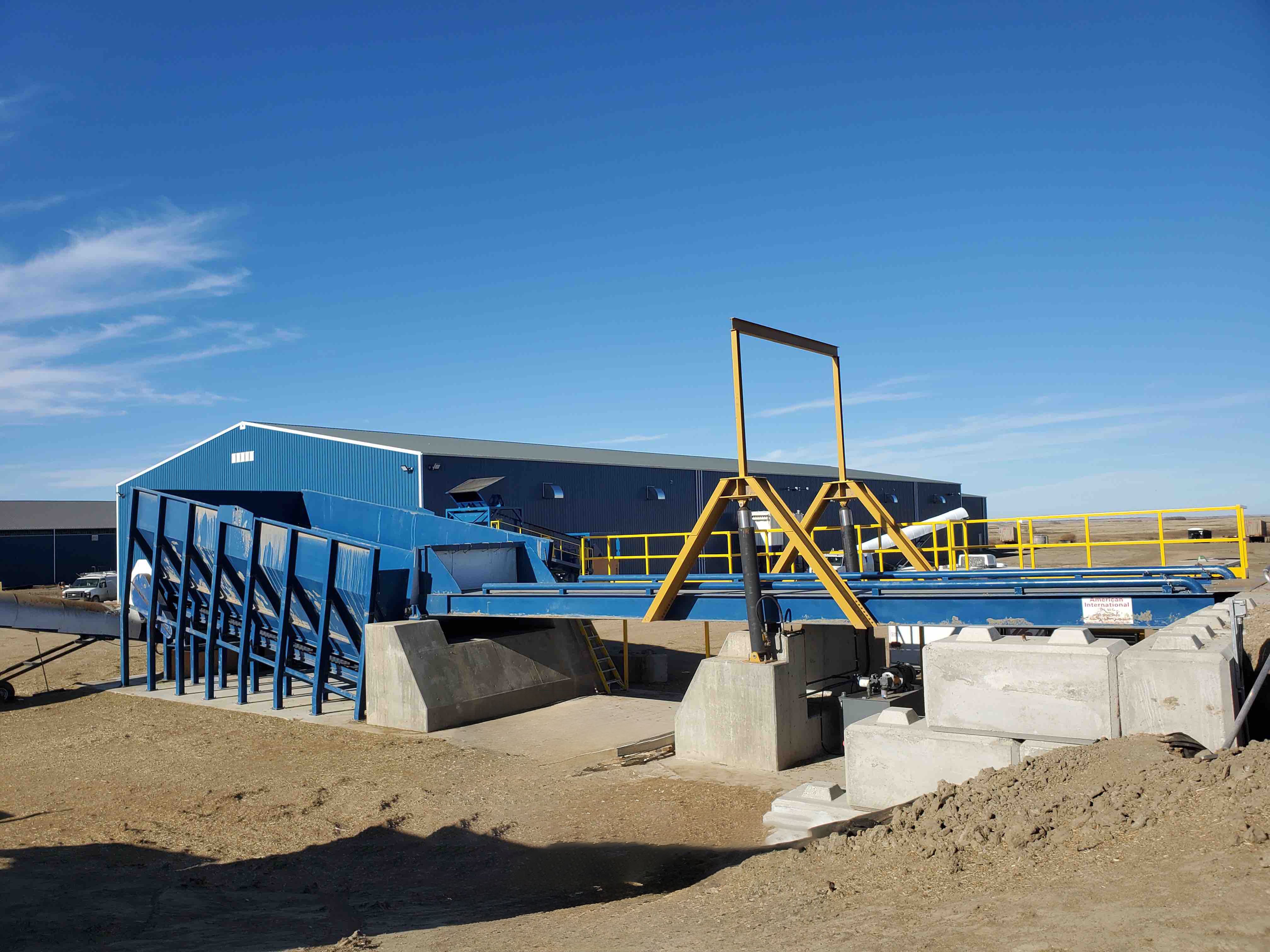

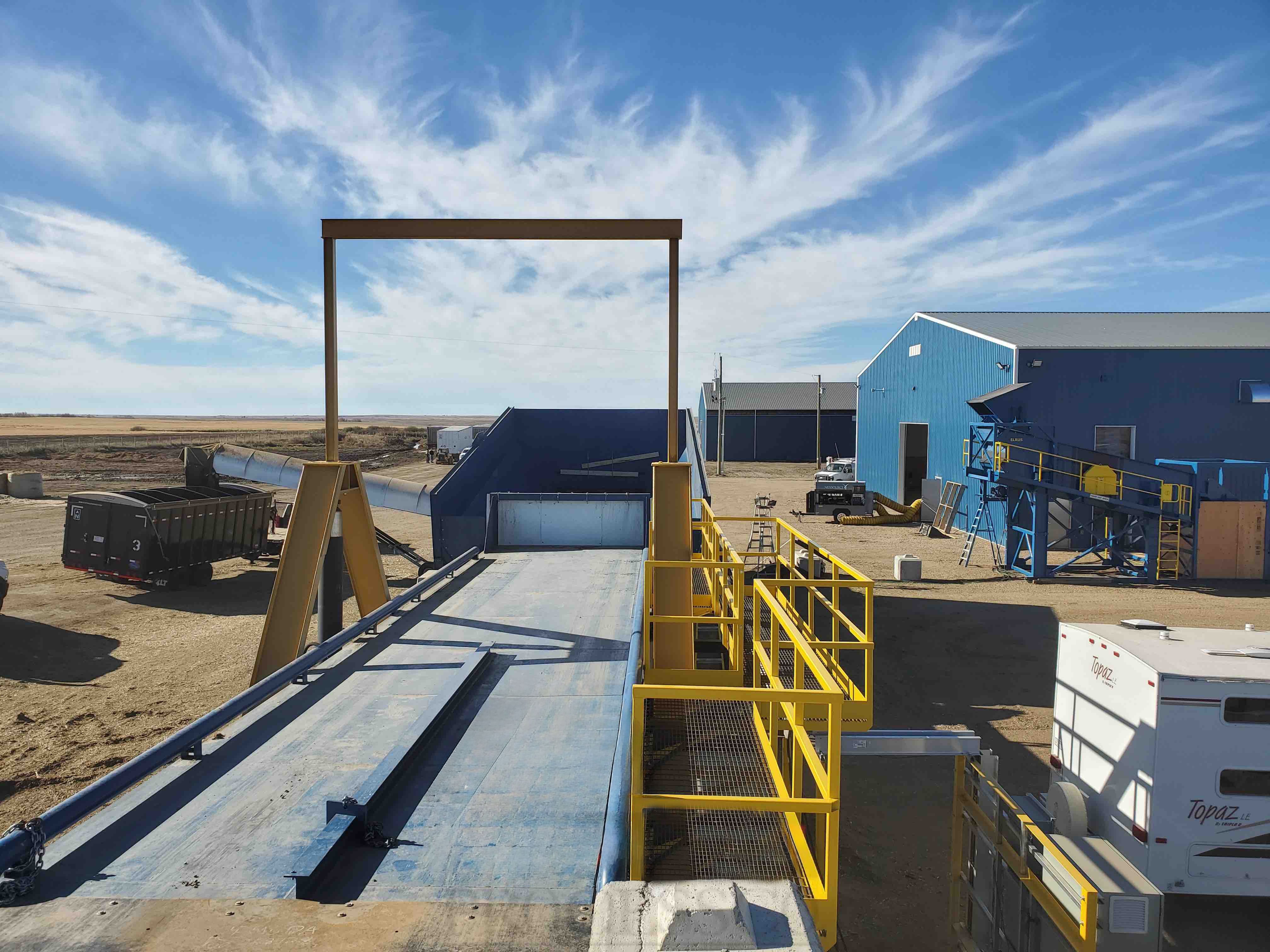

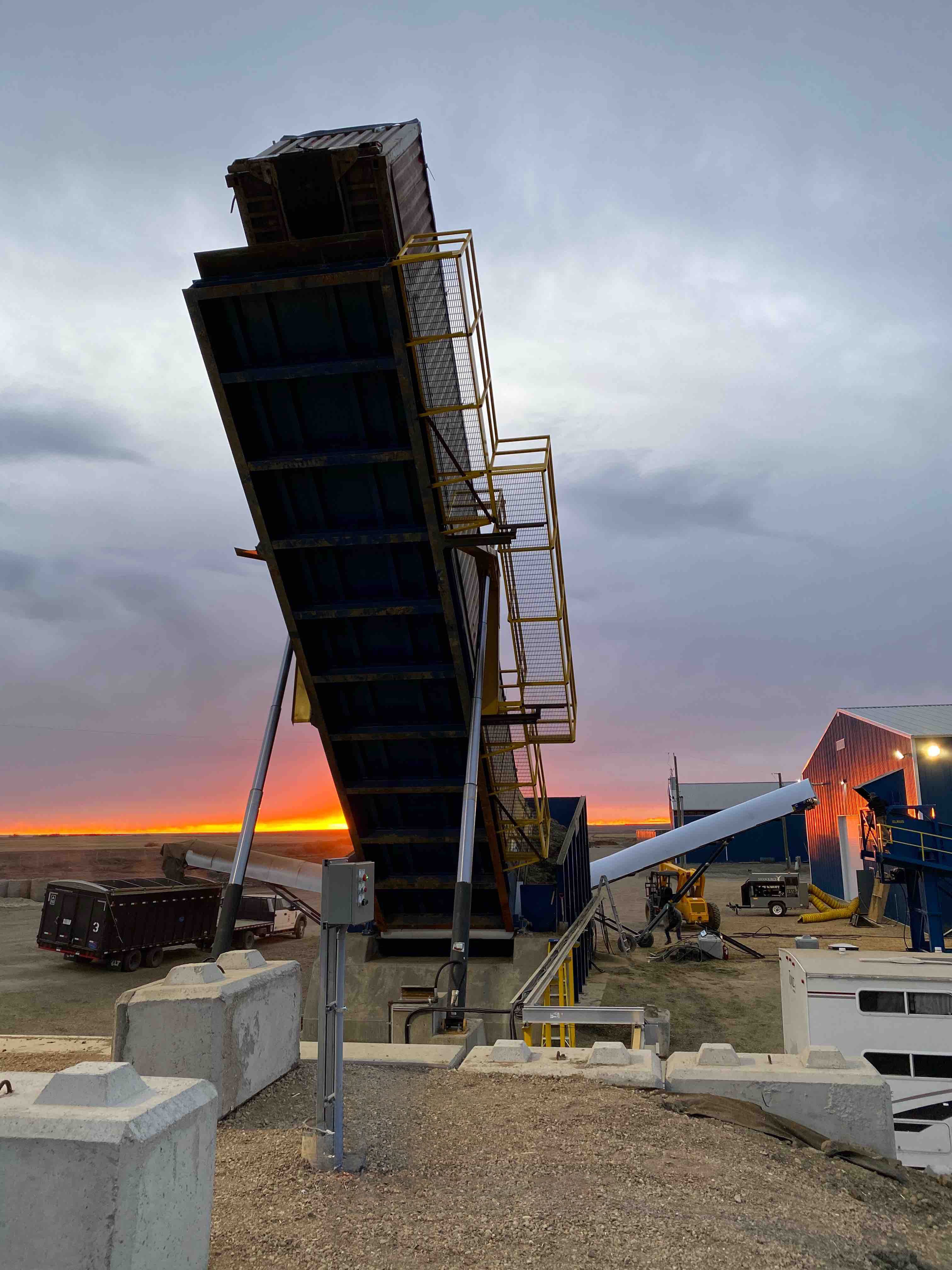

Used American International Dumper, hopper, and control system. The truck dumper has been shut down for 4 years, and when they were running, they only ran for six months of the year. Inspection of equipment can be arranged along with costing for dismantling and installation.

  • Manufacturer: American International Dumper AND Hopper
  • Stationary Chip Dumper: Model # D50-WC-17-1000-000
    • Stationary chip dumper unloads 53' truck trailers into receiving hopper
    • Maximum tilt angle, "A-frame" type, hydraulically operated
    • Standard pivot back-stop model dumper
    • 45 ton capacity
    • Includes safety hoop and safety chain tie down
    • Two (2) telescoping cylnders included
    • 250 Gallon/40 HP hydraulic pumping unit
  • Above Grade Receiving Hopper: Model H50-WC-15-1000
    • Empty Weight 54,000lb
    • Wood Chip Volume 5,800ft3
    • Wood Chip Weight 134,000lb
    • Wood chip weight is based on a specific grabity of 28lb/ft3
    • Additional Speccifications:

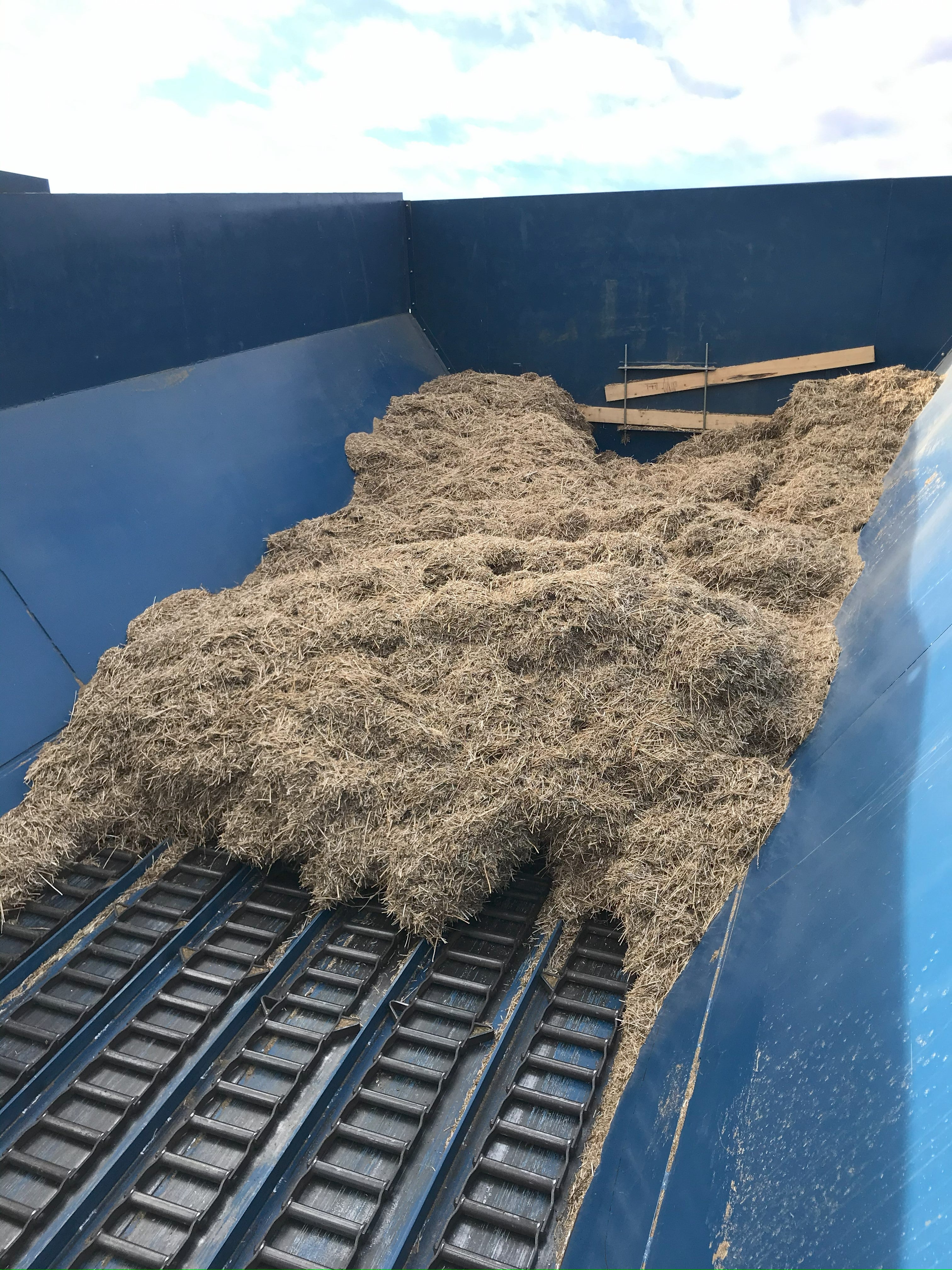

      • 5,000 cu/ft live bottom receiving hopper designed for saw dust, wood chips or other granular materials
      • Average discharge of wood product is 200 tons per hour @ approx 10-18 lb cu/ft (material size under 1" to 2" max)
      • 18" wide top hopper, slides designed with 1/4" plate, hopper legs deisgned from 6" i-beam with manual discharge gate
      • Conveyor inline approx 15 degress

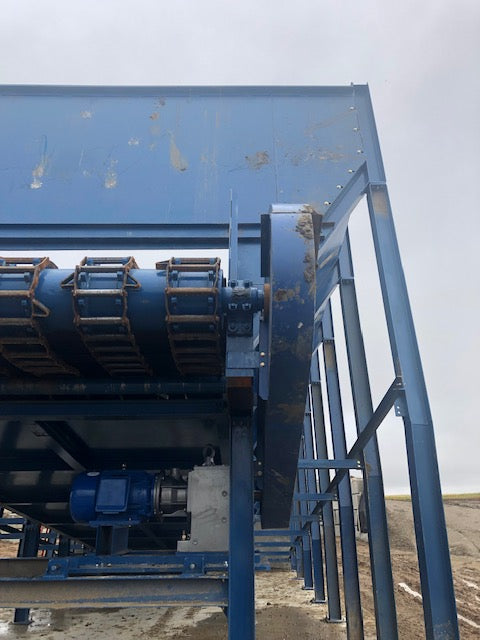

      • Single head dru, live-bottom conveyor
      • Six (6) stands of WDH-110 chain and AR guide bars
      • Chains are staggered and mounted on close centers, producing a live bottom that helps provide an even flow. Uppper deck deisgned with an A-36 3/8" plate with 1/4" AR plate covering. Lower deck designed with 1/4" AR plate.
      • Drive sprockets are case hardened steel and attached to 14" head drum rollers
      • Chain take-up design is adjustable
      • Planetary gear reducer with direct coupled 50 HP 1800 RPM motor
      • SSPC-SP-6 Mechanical surface prep, one (1) coat primer & one (1) coat high solids industrial enamel (wear surfaces receive primer coat only)
      • Manually adjustable gate discharge
    • Additional Details from Seller:
      • Seller requires 3-to-4-day notice.
      • Location East of Calgary Canada
      • Transporting would require 3 trucks
      • Equipment drawings, part #'s included
