Description

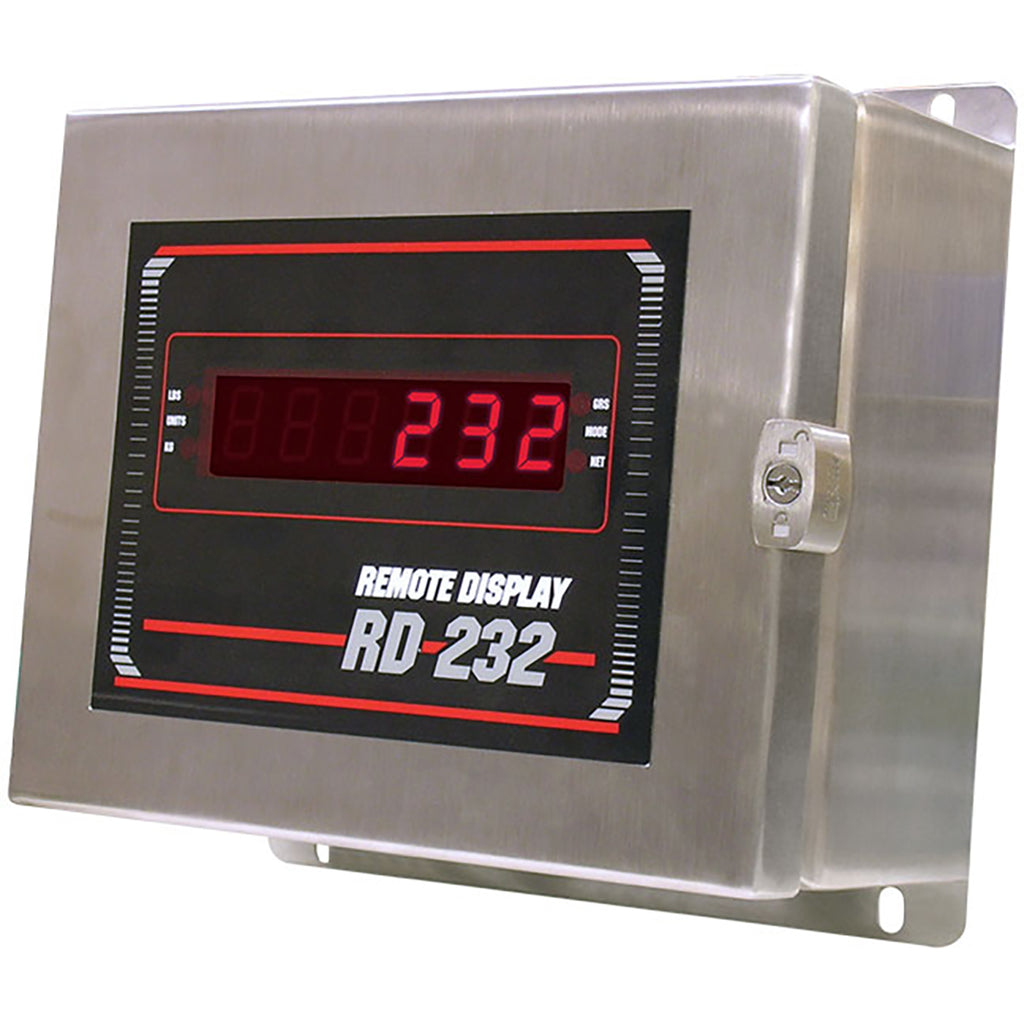

Easy-to-read 6-digit 0.8 in (20.3 mm) LED red (standard intensity) or green (sunlight visible). AC or DC operation. Four status annunciators. Full floating decimal point. RS-232 or 20 mA current loop active or passive interface. Compatible with a variety of digital weighing indicators; DIP switch selectable intuitive data receiver interprets serial strings. Baud Rate is selectable: 300, 600, 1200, 2400, 4800, 9600, 19200. Operating Temperature: -13°F to 104°F (-25°C to 40°C).
[short_description]
| Display | 6 digit, 7 segment, 0.8" LED |
| Interface | RS-232, 20mA active or passive current loop, standard ASCII compatible |
| Status Annuciators | lb, kg, gross, net |
| Enclosure | NEMA 4X Stainless Steel Wall Mount Enclosure |
| Operating Voltage | 115VAC |
