New Cardinal Armor Series Steel Deck Multi-Platform Steel Deck Truck Scale, 70' x 11' - Includes Digital Load Cell Package

Product Description

NO WAIT--This scale is ready for a new home TODAY

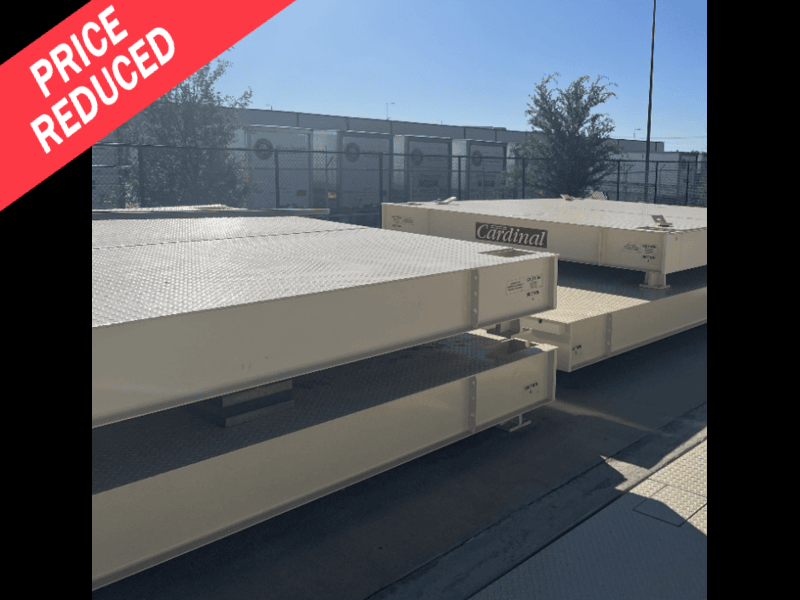

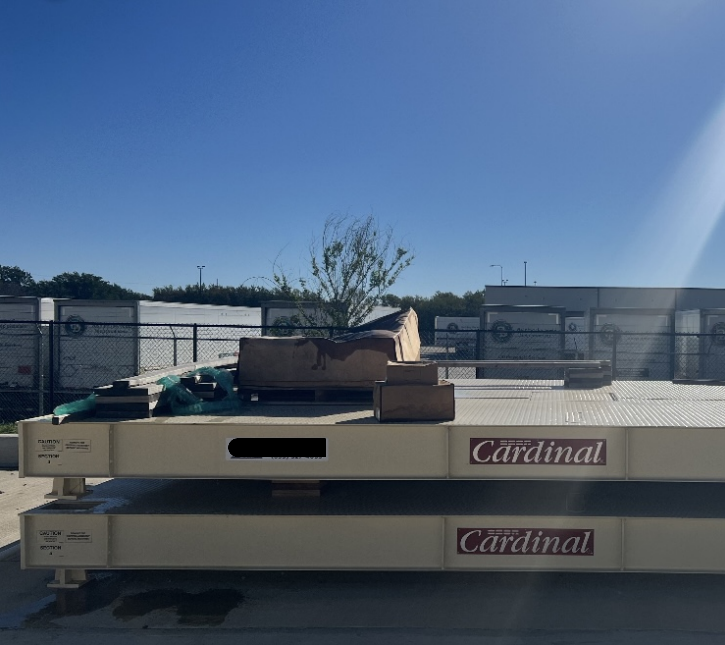

This is a multi-platform truck scale. A multi-platform truck scale is three truck scale platforms put together to allow drivers to easily capture their individual axle weights as well a a legal-for-trade GVW (Gross Vehicle Weight). This scale will have three platforms in a 10', 20' and 40' configuration. This setup is similar to what you would see at a CAT Scale location.

This scale comes with manholes but can also be installed above ground if needed.

Cardinal Scale’s steel deck ARMOR® series truck scales with digital SmartCell® load cells offer unmatched performance built to last a lifetime of heavy-duty weighing use. Every facet of the digital truck scale weighbridge and electronics have been specifically built for long-lasting endurance, minimal upkeep, and IoT monitoring convenience. ARMOR® truck scales feature 135-ton capacity, 50-ton CLC, no moving parts below the scale deck including the load cells, more structural steel than the competition, SmartCell® stainless steel waterproof digital load cells, baked-on tan powder coat paint, and IoT-enabled iSite remote monitoring software. The ARMOR® is the top-rated truck scale on the market for vehicle weighing.

• Platform Length: 70 ft
• Platform Width: 11 ft
• Gross Capacity: 135 tons
• Manholes: 2 included - Scale can be installed above ground
• Scale Indicator: Cardinal 225D
• Ticket Printer: Included
• Remote Display: Not Included. Can easily be added.
• Digital Homerun Cable: 100 ft. Included
• Ground Wire: 100 Ft. Included
• Concentrated Load Capacity: 50 tons
• Load Cell: Digital SmartCell model SCBD stainless steel waterproof load cell
• Load Cell Cables: Metal braided and run in continuous galvanized steel conduit
• Load Cell Type: Digital double-ended shear beam strain gauge design with 75,000 pound capacity
• Overall Scale Height: 17.5 inches high
• Clearance Height From Top of Pier to Lowest Part of Load Cell: 8 inches
• Paint: Baked-on, heavy-duty polyester anti-corrosion tan powder paint
• Steel Deck Thickness: 5/16 inch thick checkered deck (3/8 inch is optional)
• Load Cell Stands: axis® frictionless centering system fabricated from one-inch-thick steel to minimize rust and corrosion damage
• NTEP Approval: 17-047
• Measurement Canada Approval: AM-4890
• Distance from Top of Pier to Lowest Part of Weighbridge: 5 inches
• IoT Remote Monitoring Software: Cloud-based iSite remote monitoring with e-mail and/or text alerts
• Load Cell Exclusive Protection: All SmartCells are completely encapsulated and filled with a proprietary potting compound to fill all internal voids and prevent any potential for moisture entering the load cell
• Internal Structural Integrity: 7.5-inch apart tight concentration of I-beam spacing which additional completely surrounds the load cell pockets
• Warranty: Standard 5-year bridge-and-below warranty
• Country of Origin: USA
• Optional Guide Rails: Optional 4-inch-diameter, bolt-on pipe guide rails 8.5-inch above the deck surface
