New Avery Weigh Tronix Bridgemont HD Truck Scale 80’ x 12’
|Deck Type||Steel Deck|
|Gross Capacity||135 tons|
|Warranty||5 Years Weight Sensors, 15 Years Weighbridge Structure|
NOTE: Three (3) Scales Available with NO WAIT! Available for IMMEDIATE delivery

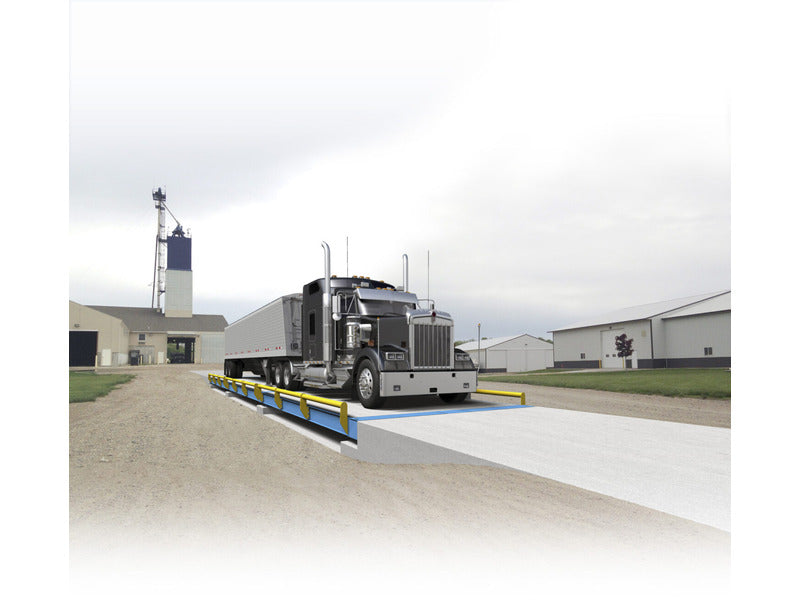

The BridgeMont Heavy Duty Steel Deck Truck Scale is an outstanding design that incorporates the most advanced engineering and production technology. It is a scale for the majority of users, who require a scale they can depend on, day in and day out. With 100% welding throughout the structure, the legendary Weigh Bar® weight sensors, and stainless steel suspension components, the BMSHD offers best-in-class strength and durability.
Gross Capacity - 135 tons
Platform Length - 80 ft
Platform Width - 12 ft
Guide Rails - Standard height guide rails included
Scale Indicator, Ticket Printer, Outside Display - NOT Included
*Price listed is for the scale platform and guide rails ONLY. Price does not include shipping costs, scale indicator, ticket printer or remote display, concrete foundation costs, equipment to offload scale modules and set them onto foundation, installation or certification costs. ScaleTrader.net can provide pricing on all of these things as needed and give you a TURN-KEY pricing solution.
AVERY WEIGH-TRONIX BRIDGEMONT SD FEATURES & BENEFITS
Concentrated Load Capacity (CLC) - At 35 tons, the BMS-SD Truck Scale is comparable to other products costing thousands more.
"r" Factor - With an "r" Factor of 2.06, the BMS-SD can handle more than twice the legal highway load limit of 34,000 lb.
Module Size - 20' each
Weighbridge Thickness - At only 10.375" thick, BMS-SD Truck Scale provides a lower profile, compact, and structurally superior design.
Elevation Profile - At 14” (standard elevation without risers), the compact, efficient design of the BMS-HD minimizes approach and exit requirements, yet provides the user total confidence in integrity of the weighbridge. Additional under clearance is easily achieved with convenient base plate risers. Scale comes with 4” risers in addition to the 14” profile
Full Electronic Design - Avery Weigh-Tronix has consistently been a leader in utilizing state of the art technology in virtually every aspect of their truck scale product range. Factory Assembled Minimizes installation time and costs. Ensures consistent product quality.
Weighbridge Design - An outstanding weighbridge design that includes a sandwich steel deck with 100% welding throughout the structure. The second benefit of the sandwich design is it seals the deck structure from the elements which can reduce the life of the scale.
Corrosion Protection - All steel surfaces are commercial blast cleaned to SSPC 6 industry standards. A high performance, high solids, two component urethane primer is applied, followed by a final coat of high quality, heavy-duty polyurethane.
Module Installation - The absence of grout plates and the drilled in place anchor bolts mean simple, low cost installation.
Weigh Bars® - Capacity of 75,000 lb for each sensor, with 200% overload safety factor and unmatched reliability.
Weigh Bar Performance - Impervious to end, side, and torque loading conditions that can destroy conventional load cells.
Weigh Bar Design - Produced from high quality aircraft alloy steel bar stock that has been heat treated, quenched, and tempered to resist corrosion. Also provides better repeatability and less hysteresis than stainless steel.
Weigh Bar Reliability - Failure rate of only 0.31% compared with a national average of 3 to 5% on conventional load cells.
Weigh Bar Protection - Extremely resistant to surge voltage or lightning related problems. Strain gauges are scientifically sealed against moisture or corrosive elements.
Weigh Bar Cabling - Stainless steel jacketed cables in factory installed conduit runs.
Easi-Post Self-Checking - Rugged Easi-Post™ suspension with self-checking design absorbs shocks and vibration from sudden starting and stopping of vehicles on scale. All components are made with hardened, stainless steel material for outstanding strength, durability, and corrosion protection. No check rods or bumper plates required.
NEMA 4X Stainless Steel Junction Box - Compact, all stainless steel junction and summation boxes, with connector-less cables for elimination of moisture or condensation related problems. Includes Gore breather vent to equalize pressure inside and outside the box.
One of our agent will get back to you as soon as possible
Price : $78,000.00
