WA Series displays feature Kazel Auto-Learn technology which is one of the most advanced in the market of remote displays. Our complex algorithm makes them be plug & play devices which are up and running within a few seconds. They can be connected to virtually every weighing indicator and all extra features can be configured with easy-to-use WagSet 2 software.

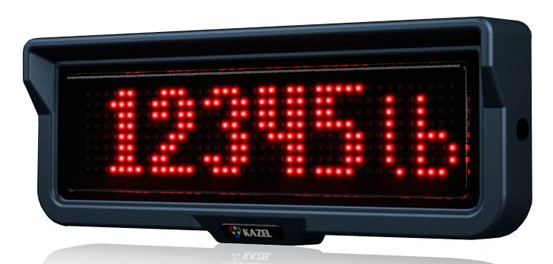

WA-1 MINI was designed in an extra strong polycarbonate housing. 8x40 pixels, 2.4” full matrix LED boards allow to display not only the weighing score but also various info and advertising messages. Features include KAZEL Auto-Learn technology, super bright LEDs, a full matrix 8x40 pixels alphanumeric display, 2.4” character height, and visibility up to 85 ft. The enclosure features a durable polycarbonate construction with ingress protection rated at IP66. It has dimensions of 15.9” W x 5.9” H x 1.6” D and a ship weight of 3.3 lb (1.5 kg). This model is equipped with a LAN connection, enabling it to interface through a router and position devices at a greater distance from the primary connected device, such as a scale.
Table Example | Dimensions (WxHxD): | 15.9in x 5.9in x 1.6in / 404mm x 151mm x 40mm |
| Digit height: | 60mm / 2.4in
|
| Permissible input voltage range (long-term): | 100 ÷ 240 VAC
|
| Permissible input voltage range (short-term): | 85 ÷ 264 VAC |
| Acceptable input voltage frequency range: | 47 ÷ 63 Hz
|
| Device operation temperature (ambient): | -13°F ÷ 113°F / -25°C ÷ 45°C
|
| Device operation temperature (device surface): | -13°F ÷ 140°F / -25°C ÷ 60°C |
| Average power consumption: | 5W |
| Casing tightness rating IP:
| 66 |
| Device weight: | 3.3lb / 1.5kg
|
