Description

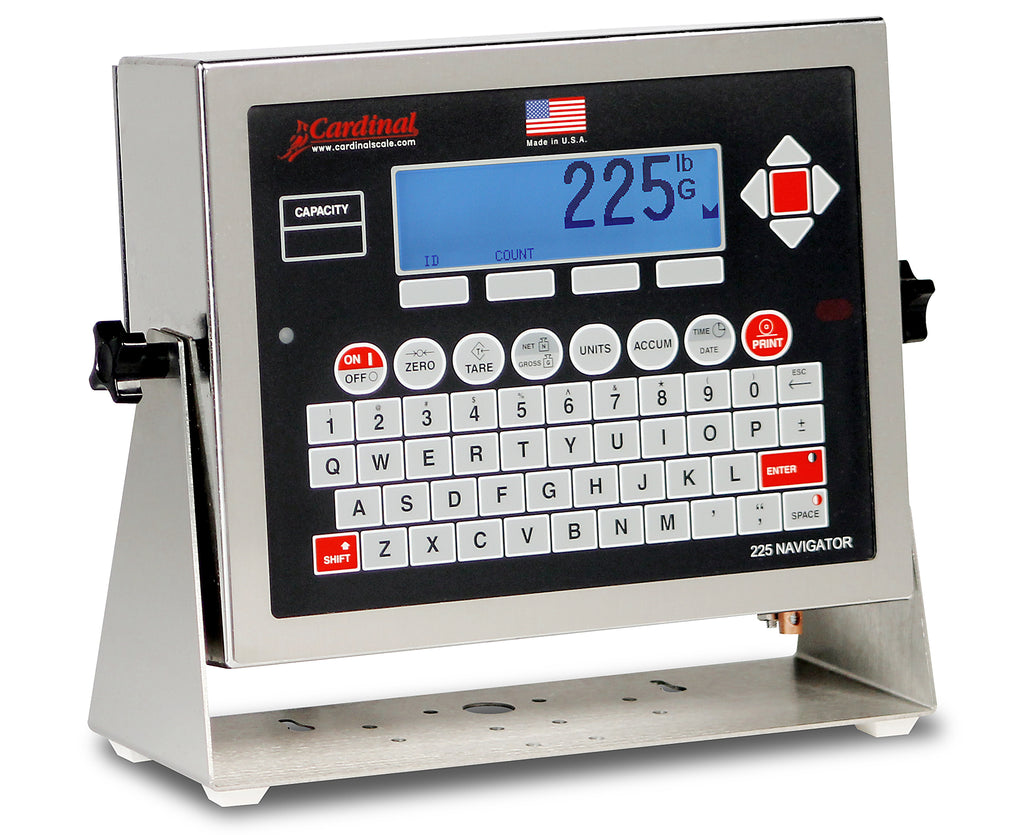

The 225 Navigator weight indicator’s transflective display technology allows the 240 x 64-pixel (5-inch/127 mm W x 1.33-inch/34 mm H) back-lit LCD with 1-inch high characters to be viewed under any lighting conditions from direct sunlight to total darkness. With an optional dual scale input board, up to 3 scales with total weights can be viewed simultaneously. Standard features include IP66 washdown stainless steel enclosure, 4 bi-directional RS232 serial ports, USB-B port, QWERTY keypad, 4 soft keys, 13 function keys, navigation keys, 16 Preset Weight Comparators (PWCs), 8 input control lines, 16 output control lines, piece count, batching, electronic tally roll, and 200 ID database for truck storage. NTEP legal-for-trade and OIML certified. Supports up to 14 350-ohm load cells.
[short_description]
| Load Cells | Up to 14, 350Ω |
| Display | 5" x 1.33", monochrome graphics LCD with white LED backlight |
| Keypad | 60 key color coded keypad with QWERTY keys plus 4 soft keys and 13 function keys |
| Power | 100 to 240 VAC |
| Construction | Stainless Steel wall or desk mount |
