Description

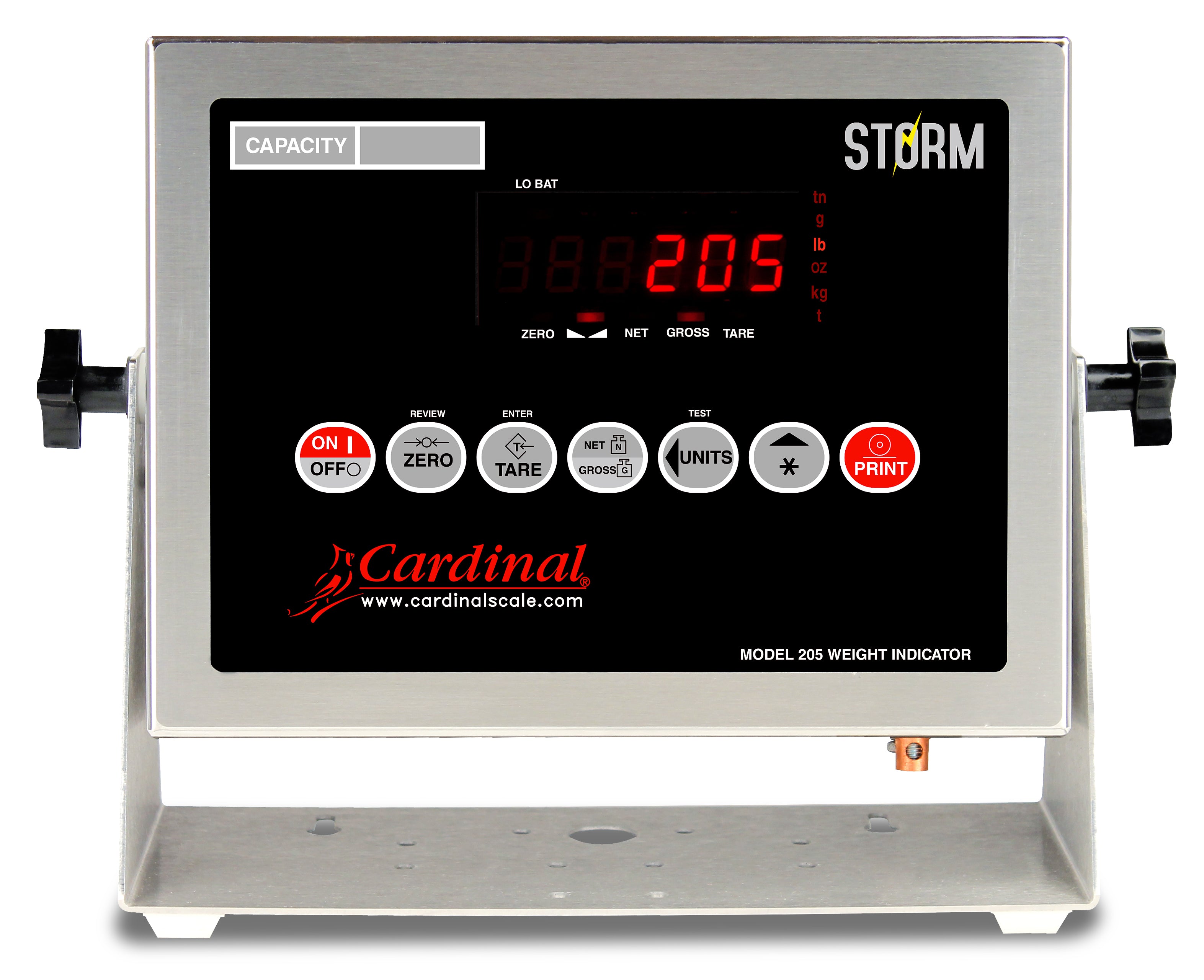

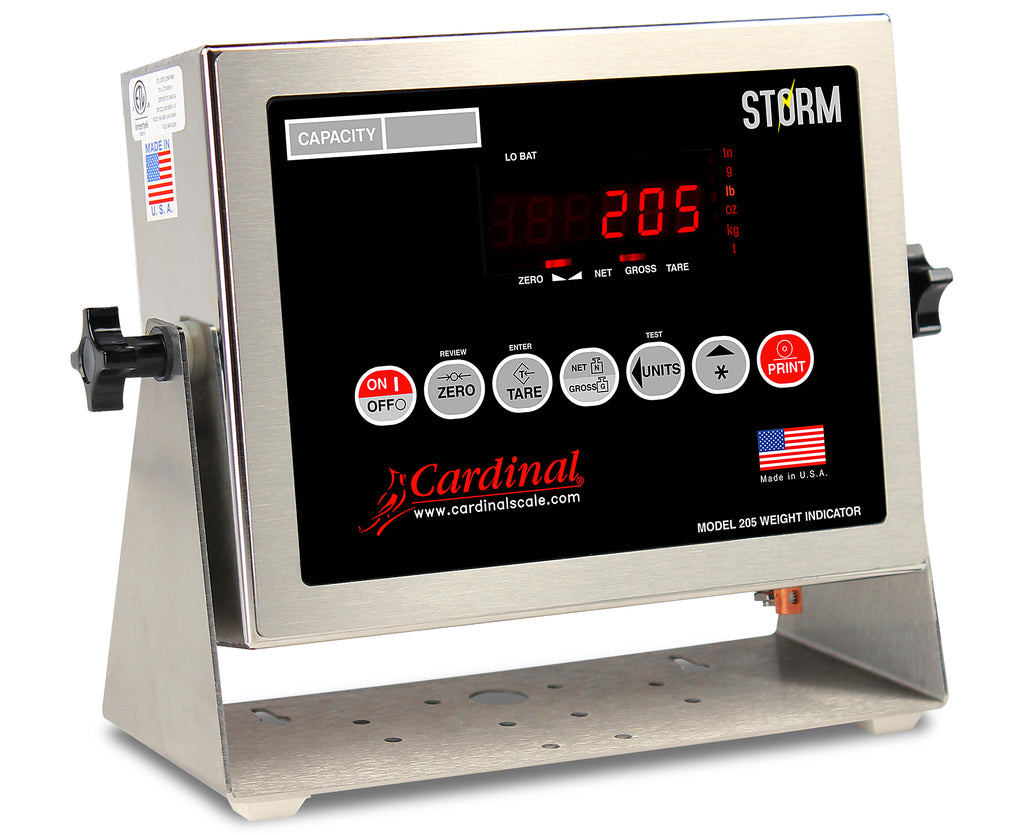

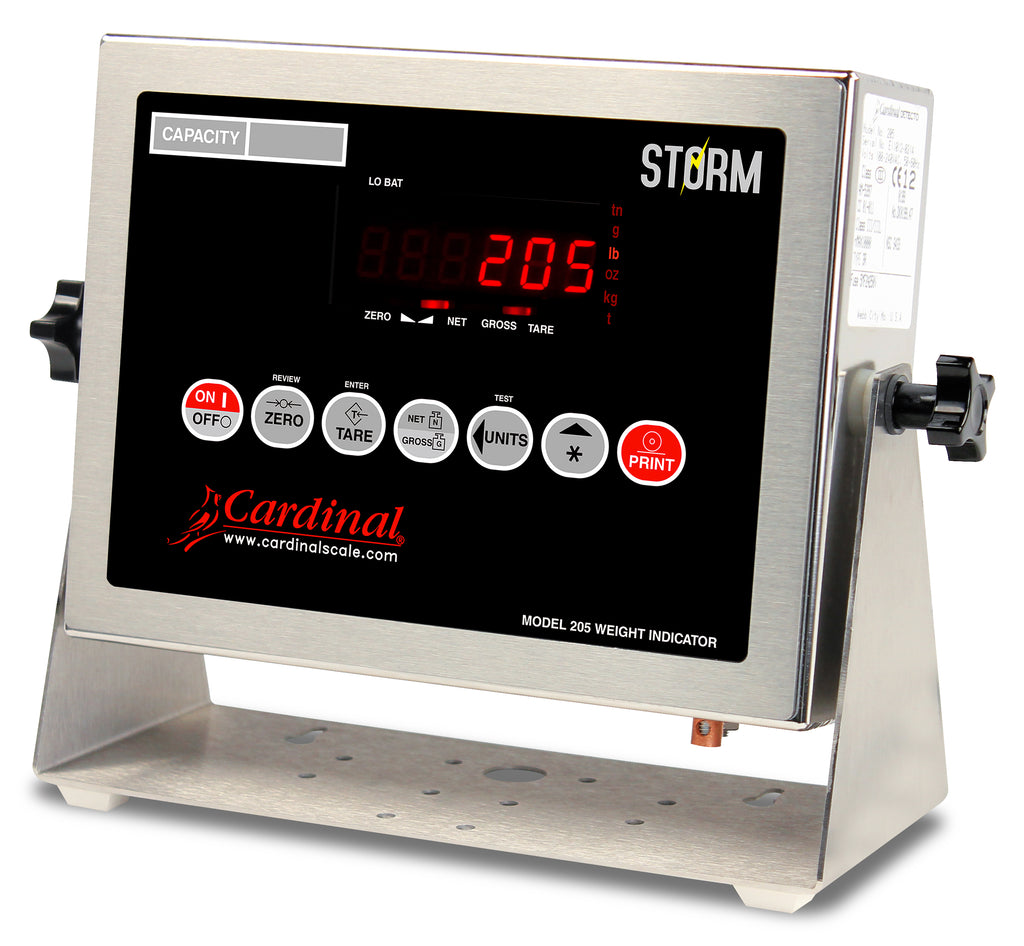

The Cardinal model 205 is a reliable general-purpose weight indicator which may be connected to bench, floor, overhead track, tank/hopper, livestock or even truck scales. The stainless steel desk or wall-mountable enclosure ensures accurate, reliable operation in harsh environments and washdown applications. An easy-to-read 0.6-inch/15 mm high bright-red LED displays weight to six digits while push-button Gross, Tare, Net conversion, StableSENSE adjustable filtering, selectable key lockout, flexible print formats, selectable weight units, auto shutoff and sleep mode make the 205 easy to use. Four bi-directional RS232 serial ports, four input control lines, optional SnapStream wireless, USB-B standard, and USB-A optional features provide multiple connectivity options. NTEP, OIML, Measurement Canada, Australian NSC, ETL, and CE.
[short_description]
| Load Cells | Up to 8, 350Ω |
| Display | 0.6", 6 digit, 7 segment high LED |
| Keypad | Color Coded Membrane type, 7 keys |
| Power | 100 to 240 VAC |
| Construction | Stainless Steel wall or desk mount |
